One-stop phased array antenna system solution

Leveraging our leading FlxCube™ phased array antenna technology and extensive industry experience, we provide complete solutions from subarrays to full systems to accelerate your product launch.

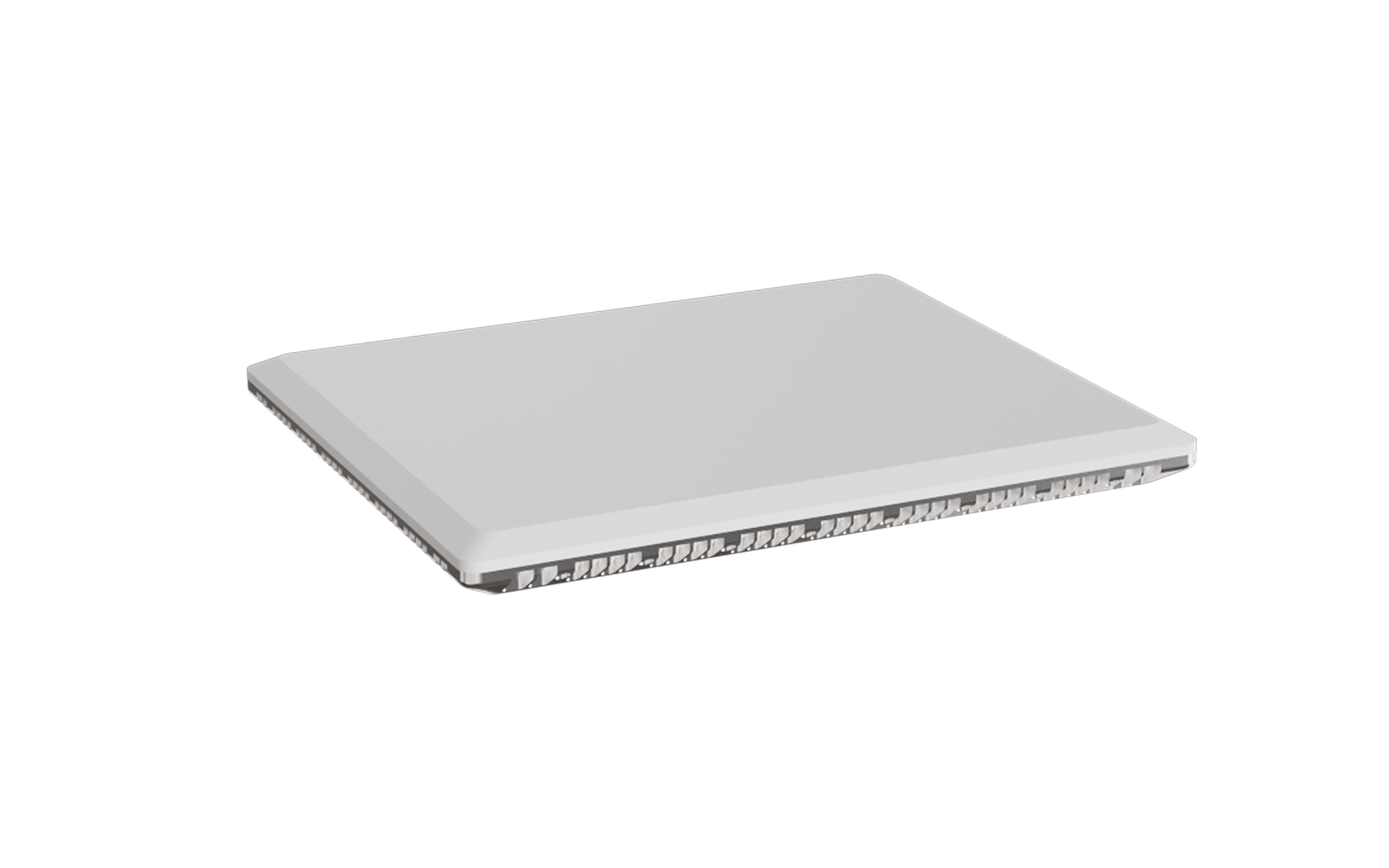

256 Unit 1T1R

Ku-band 2D Phased Array Satellite Antenna

256 1T1R 2D phased array antenna unit, integrating Flxcube™ cube subarrays, up/down-conversion modules, and tracking & navigation modules. Compatible with various satellite modems, it supports both LEO and GEO satellites and efficiently adapts to diverse mobile broadband satellite communication scenarios.

Operating FrequencyRX: 10.7~12.75GHz TX: 13.75~14.5GHz
G/T4dB/K
Effective Isotropic Radiated Power33dBW
Size440mm × 370mm × 57mm
Weight≤5 kg
Power Consumption≤120W
256 Cell 1T1R

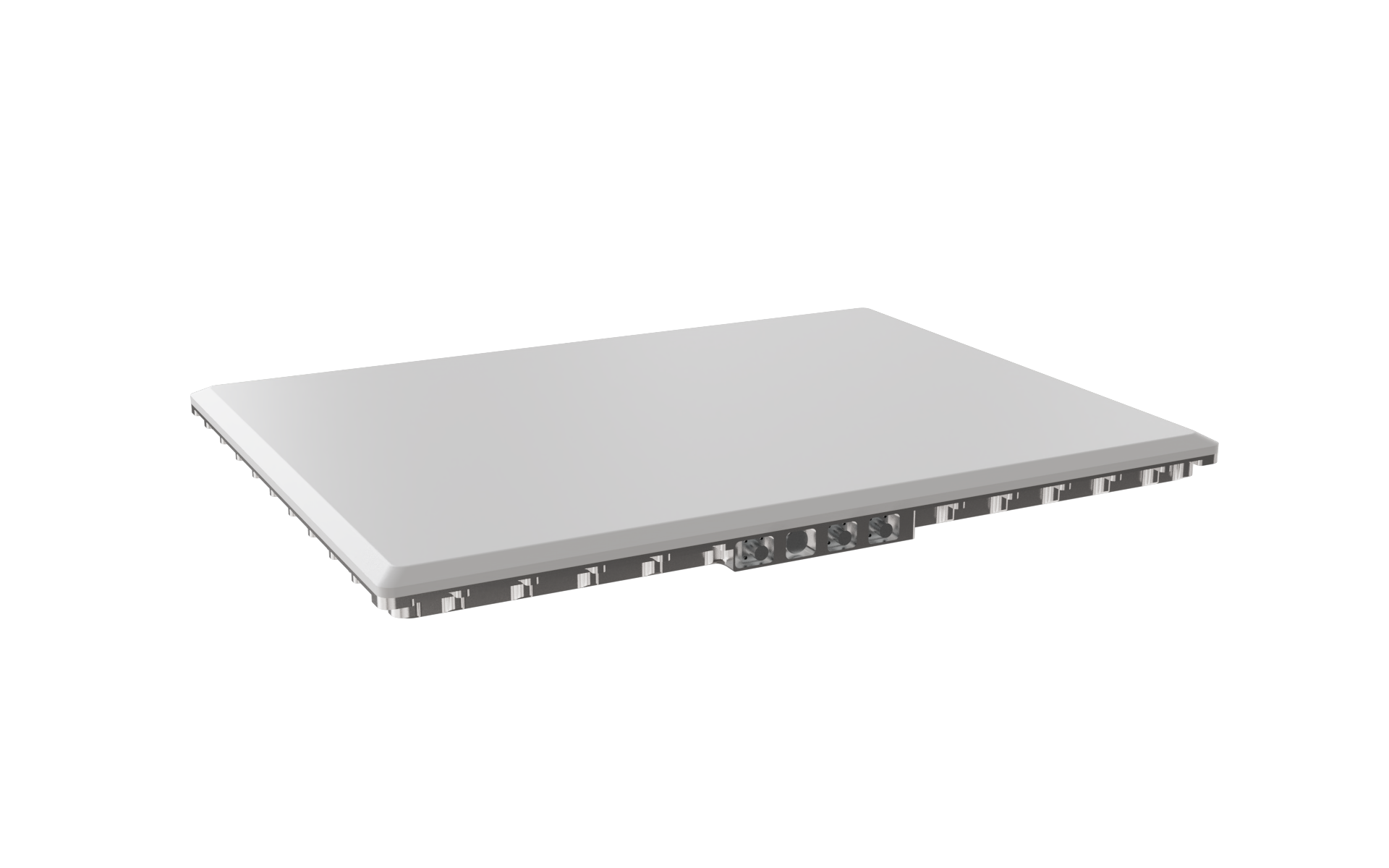

768 Unit 1T1R

Ku-band 2D Phased Array Satellite Antenna

768 1T1R 2D phased array antenna unit, integrating Flxcube™ cube subarrays, up/down-conversion modules, and tracking & navigation modules. Compatible with various satellite modems, it supports both LEO and GEO satellites and efficiently adapts to diverse mobile broadband satellite communication scenarios.

Operating FrequencyRX: 10.7~12.75GHz TX: 13.75~14.5GHz
G/T9 dB/K
Effective Isotropic Radiated Power43dBW
Size700mm × 530mm × 40mm
Weight≤12kg
Power Consumption≤280W
768 Cell 1T1R

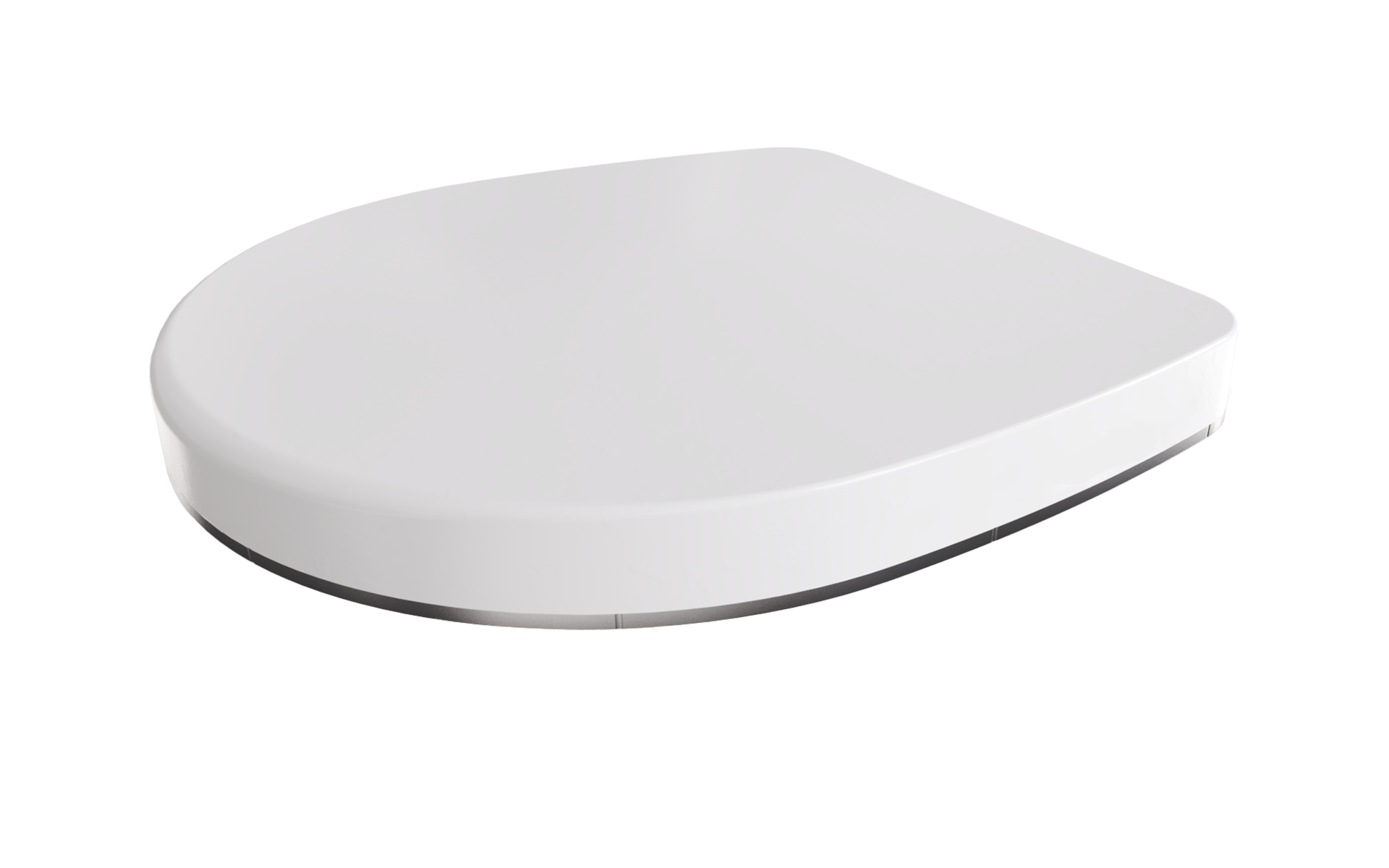

RUV900

Ku-band satellite terminal for mobile communications

RUV-900: High-performance ultra-thin phased-array mobile satellite internet terminal for vehicle-on-the-move. Rapidly locks onto satellites at high speeds to ensure stable, continuous connectivity. The rugged solution for field and emergency communications.

Operating FrequencyRX: 10.7~12.75GHz TX: 13.75~14.5GHz
G/T12.5dB/K
Effective Isotropic Radiated Power51 dBW
Size1175mm x 1150mm x 120mm
Weight≤63.5kg
Power Consumption≤550W
RUV900
